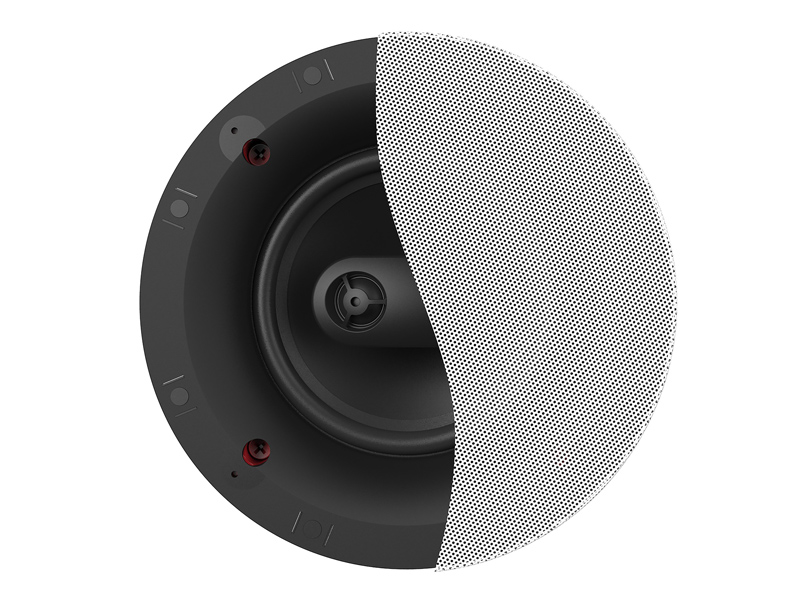

Klipsch Designer Series 8″ In-Ceiling Speaker DS180CSM

Category : In-Ceiling Speakers
SKU : DS180CSM UPC : 743878033007

$399.00 CAD

Literature

DS-180CSM

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren’t possible.

Features:

  • 8” Polypropylene woofer
  • Dual .75” Silk Dome tweeter
  • Patent-Pending SkyHook™ Tool-Free Installation System
  • Bezel-Free Magnetic Grille

SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM

The exclusive installation system by Swarm technology engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

HORN-LOADED PERFORMANCE

Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.

Specifications
Frequency Response 73Hz - 20kHz +/- 3dB
High Frequency Driver Dual .75" (1.9cm) Silk Dome Tweeters
Low Frequency Driver 8" (20.32cm) Polypropylene Woofer
Sensitivity 94 dB @ 2.83V / 1m
Coverage Angle 160°
Power Handling 50W RMS / 200W RMS
Impedance 4 Ohm
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D)
Mounting Depth 4.45” (11.3cm)
Cutout Dimensions 9.8” (24.9cm)
Product Weight 7.4 lbs (3.36kg)
Included Flat Paintable Magnetic Grille
Installation Kit IK-800-C II (Sold Separately)
Fire Rated Enclosure ME-800-C (Sold Separately)
Built From 2017
