Epson ProG7500U Bright large-venue projector with 4K Enhancement, powered lenses V11H750020

Category : Projectors
SKU : V11H750020


Literature

Bright large-venue projector with 4K Enhancement, powered lenses and HDBaseT.

The Pro G7500U large-venue projector delivers uncompromising image quality and native WUXGA performance with Epson® 4K Enhancement Technology†. Offering 3x Higher Colour Brightness* than competitive models, Epson 3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the versatile G7500U features 6500 lumens of color brightness and 6500 lumens of white brightness1. Innovative 4K Enhancement Technology† ensures extraordinary image and video quality, while dynamic projection capabilities enable a range of applications. And, its outstanding integration features include diverse connectivity such as HDBaseT and nine optional powered lenses with lens shift and lens memory (Ships with Middle#1 Lens - V12H004M08).

3x Higher Colour Brightess with Epson*

Brilliant image quality requires high colour brightness. Epson 3LCD projectors have 3x Brighter Colours than leading competitive projectors*. Delivering 6500 lumens of colour brightness1 and 6500 lumens of white brightness1, the PowerLite Pro G7500U uses 3LCD, 3-chip technology for brilliant images with true-to-life colour.

Projection System:High-aperture Epson 3-chip 3LCD technology
Native Resolution:WUXGA (1920 x 1200) w/ 4K Enhancement Technology†
Colour Brightness:6500 lumens1
White Brightness: 6500 lumens1
Model: V11H750020

Bright and Colourful Features 7000 lumens of colour brightness (colour light output)1 and 7000 lumens of white brightness (white light output)1. 4K Enhancement Technology Epson's 4K Enhancement Technology delivers astonishing picture quality — every subtle intricacy is captured. HDBaseT Combines HDMI, ethernet and RS-232 into one cable Advanced Edge Blending Get seamless panoramic, multi-screen edge blending on horizontal or vertical walls, with curved surface and corner wall support. Optional Lenses Interchangeable lens options with varying ranges for optimal placement and flexibility Edge Blending Use multiple projectors to overlap images, and there are no bright spots where the overlap occurs – providing dynamic, seamless projection.



  • 3x Higher Colour Brightness* and reliable performance — 3LCD, 3-chip technology
  • One measurement of brightness is not enough — look for both high colour brightness and high white brightness.
  • The PowerLite Pro G7500U has:
  • Colour Brightness: 6500 lumens1
  • White Brightness: 6500 lumens1
  • Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement† (3840 x 2160) for presentations, videos, digital signage and more
  • Innovative 4K Enhancement Technology† — doubles the number of pixels from 2.3 million (WUXGA) to 4.6 million for extraordinary image and video quality
  • Nine optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (standard lens included)
  • Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, VGA and 5-BNC, for easy integration with any system
  • Advanced collaboration features — simultaneously project side-by-side from different sources with Split Screen2
  • Web-based remote management — control and monitor projector status via a Web browser
  • Multi-PC Projection — connect up to 50 Windows®, Mac®, iOS® or Android devices and display up to four screens simultaneously over the network (controlled via the Moderator3 function)
  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
  • Epson Warranty — Three-year limited warranty,Epson Road Service Program , Epson PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty.

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay™ Transport Partner5
Specifications Projector:
Projection System:High-aperture Epson 3-chip, 3LCD technology
Projection Method:Front / rear / ceiling mount
Driving Method:Epson Poly-silicon TFT Active Matrix
Pixel Number:2,304,000 dots (1920 x 1200) x 3
Colour Brightness - Colour Light Output:6500 lumens1
White Brightness - White Light Output:6500 lumens1
Aspect Ratio:Supports 4:3, 16:9, 16:10
Native Resolution:1920 x 1200 (WUXGA)
Resize:640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Lamp Type:400 W UHE
Lamp Life:Normal mode: Up to 3000 hours2 ECO mode: Up to 4000 hours2
Brightness Uniformity:(typical) 90%
Pixel Arrangement:Cross stripe
Throw Ratio Range:(For Standard Lens) 1.44 – 2.32
(For Standard Lens) 1.44 – 2.3250" – 300"
Keystone Correction:(For Standard Lens), Horizontal: ±30 degrees, Vertical: ±45 degrees
Colour Reproduction:Up to 1 billion colours
Effective Scanning Frequency Range:
Pixel Clock13.5 MHz – 162 MHz (up to UXGA 60 Hz), Horizontal 15 KHz – 92 KHz, Vertical 50 Hz – 85 Hz,
General:
Temperature:32° to 113° F (0° to 45° C)
Weight:28.4 lb (with standard lens)
Security:Security cable hole, Lens lock, Kensington® lock provision
Projection Lens:
Type:(For Standard Lens) Powered focus / zoom
F-number:(For Standard Lens) 1.70 – 2.30
Focal Length:(For Standard Lens) 24.0 mm – 38.2 mm
Zoom Ratio:(For Standard Lens) Optical zoom 1.0 – 1.6x
Lens Shift:(For Standard Lens), Vertical: ±67 degrees, Horizontal: ±30 degrees
Projector Details:
Display Performance:NTSC: 480 line, PAL: 576 line, (depends on observation of the multi-burst pattern)
Input Signal:NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p, Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)

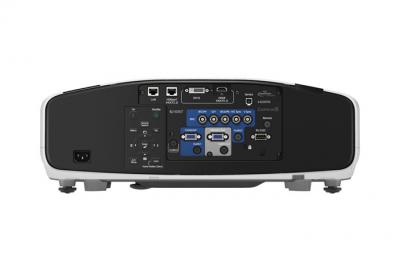

Interfaces:HDBaseT x 1, DVI-D x 1, HDMI x 1, Computer: D-sub 15 pin x 1, Component Video: BNC x 1, Audio-in: Mini stereo x 3, Audio Out x 1, Network: RJ-45 x 1, 100 Mbps Serial: RS-232c, Hardwire remote jack x 1, Monitor Out: D-sub 15 pin x 1
Fan Noise:Normal mode: 39 dB, ECO mode: 31 dB
Projector Dimensions:
Including feet:With standard lens: 20.67 x 18.58 x 7.44 (W x D x H)
Excluding feet and lens:20.67 x 16.73 x 7.28 (W x D x H)
Remote Control:
Features:Power, source search selection, computer, video, A/V Mute, freeze, user ID, auto, aspect, colour mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions
Operating Distance:49 ft
Operating Angle:Right / Left: Front: ±60 degrees, Rear: ±30 degrees, Upper / Lower: Front: ±20 degrees, Rear: +10 to +50 degrees
Power:
Power Supply Voltage:100 – 240 V ±10%, 50/60 Hz AC
Power Consumption:Normal mode:601 W, ECO mode: 498 W, Communication on: 3.0 W standby, Communication off: 0.5 W standby
