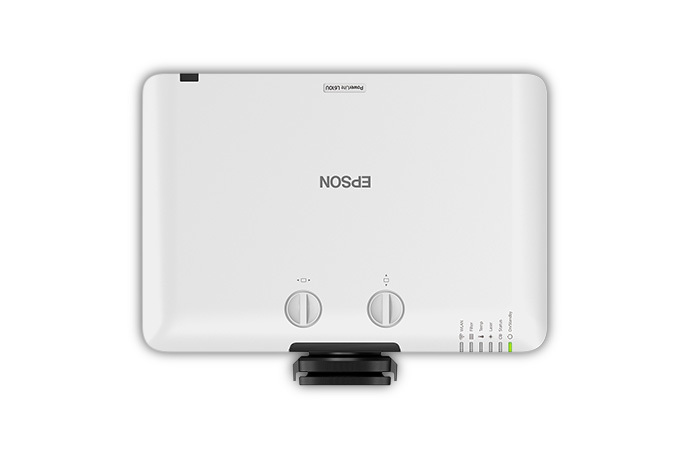

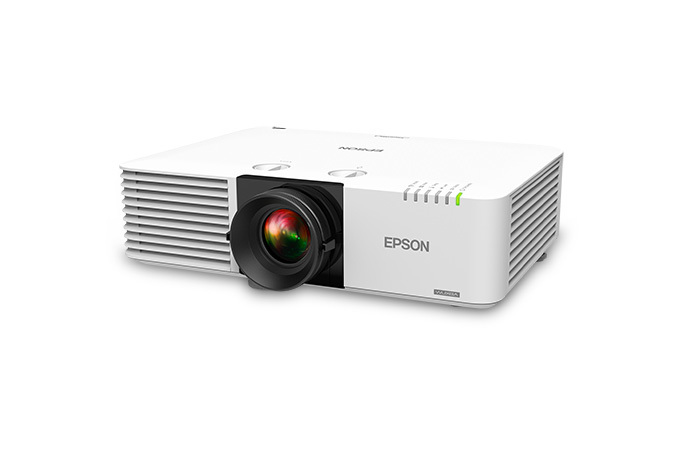

Epson PowerLite L610U Wireless WUXGA 3LCD Laser Projector - V11H901020

Category : Projectors
SKU : V11H901020


Literature

Powerful, compact WUXGA laser projector with 6,000 lumens plus lens shift.

The compact, affordable PowerLite L610U laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 6,000 lumens colour/white brightness1. This wireless projector also offers WUXGA resolution and Full HD support. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours2. And, it offers virtually maintenance-free operation with no lamps. Plus, it features a Dynamic contrast ratio of up to 2,500,000:1. It also includes manual lens shift, wireless networking with enterprise-level security, Miracast®, and advanced installation features.

Bright, vivid colour

6,000 lumens colour/white brightness1.

Full HD, widescreen images up to 500"

WUXGA resolution (1920 x 1200); Full HD 1080p support

Breakthrough laser technology

features a laser light source of up to 20,000 hours2; plus, Instant ON/OFF

Virtually maintenance-free operation

no lamps

Extraordinary sharpness and detail

up to 2,500,000:1 Dynamic contrast ratio

Flexible installation

up to ±50 percent vertical and ±20 percent horizontal manual lens shift

  • Integrated wireless networking with enterprise-level security — plus wireless content sharing with Epson iProjection™3; and wireless mirroring with Miracast for Android™/Windows® 8.1+ devices, or AirPlay® for iOS® devices (requires Apple TV®)
  • Advanced installation features — 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner® and more
  • Robust connectivity — supports HDBaseT™, 2x HDMI®, VGA, RJ-45, stereo mini and control management tools
  • Constant Brightness Mode4 — fine-tune the brightness setting to help maximize run time

Eco Features

  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWay™ Transport Partner6

Projector Details:

Interfaces:

  • 1x HDBaseT
  • 2x HDMI (1x MHL)
  • Computer: 1x D-sub 15 pin
  • 1x Control I/O: RS-232C D-sub 9 pin
  • USB-I/O: Type A 1x; Type B 1x
  • Wired LAN RJ45
  • Wireless LAN Built-in
  • Audio in (stereo): 2x
  • Audio out (stereo): 1x

What's In The Box:

  • PowerLite L610U Projector
  • Power cord
  • Computer cable (VGA)
  • Remote control and batteries
  • Quick setup poster
  • Cable cover
Specifications Projector
Projection System:RGB Liquid Crystal Shutter Projection System
Projection Method:Front, Front/Ceiling, Rear, Rear/Ceiling
LCD Screen:0.67" (D10 with C2Fine™)
Driving Method:Poly-silicon TFT Active Matrix
Pixel Number:2,304,000 pixels (1920 x 1200) x 3
Colour Brightness - Colour Light Output:6,000 lumens1
White Brightness - White Light Output:6,000 lumens1
Aspect Ratio:16:10
Resolution:1920 x 1200 (WUXGA)
Throw Ratio Range:1.35–2.20
Size - projected distance:80" screen: 2.33–3.78 m
Keystone Correction:Vertical: ±30 degrees; Horizontal: ±30 degrees
Contrast Ratio:Up to 2,500,000:1
Colour Processing:10 bit
Colour Reproduction:Up to 1.07 billion colors
Light Source Life:Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
Illumination Technology:Laser Diode
Effective Scanning Frequency Range
Pixel Clock:Analog: 13.5–162 MHz (up to UXGA 60 Hz) Digital: 13.5–162 MHz (up to UXGA 60 Hz)
Horizontal:Analog: 15–92 kHz Digital: 15–75 kHz
Vertical:Analog: 50–85 Hz Digital: 24/30/50/60 Hz
Projection Lens
Type:Optical Zoom (Manual)/Focus (Manual)
F-number:1.5–1.7
Screen Size:Zoom: Wide: 50"–500" [1.44–14.76 m]; Zoom: Tele: 50"–500" [2.35–23.84 m]
Focal Length:20.0–31.8 mm
Zoom Ratio:1–1.6
Lens Cover:Lens cap (without string)
Projector Dimensions
Including feet:17.32" x 11.97" x 5.35" (W x D x H)
Excluding feet:17.32" x 11.97" x 4.73" (W x D x H)
Weight - with standard lens:Approx. 18.7 lb/8.45 kg
Remote Control
Operating Distance:8 m
Operating Angle:Front: Right/Left: ±60 degrees; Upper/Lower: +30 to -20 degrees Rear: Right/Left: ±30 degrees; Upper/Lower: +50 to +10 degrees
Power
Power Supply Voltage:100 – 240 V ±10%, 50/60 Hz AC
Power Consumption:Normal: 370 W; Quiet: 276 W; Networked Standby 2.0 W; Energy Saving: 0.3 W
