Epson PowerLite L610W WXGA 3LCD Laser Projector - V11H904020

Category : Projectors
SKU : V11H904020


Literature

Powerful, compact WXGA laser projector with 6,000 lumens plus lens shift.

The compact, affordable PowerLite L610W laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 6,000 lumens colour/white brightness1. This robust projector also offers WXGA resolution for widescreen images. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours2. And, it offers virtually maintenance-free operation with no lamps. Plus, it features a Dynamic contrast ratio of up to 2,500,000:1. It also includes manual lens shift, enterprise-level wireless security support (module sold separately), and advanced installation features.

Bright, vivid colour

6,000 lumens colour/white brightness1.

Colourful, widescreen images up to 500"

WXGA resolution (1280 x 800)

Breakthrough laser technology

features a laser light source of up to 20,000 hours2; plus, Instant ON/OFF

Virtually maintenance-free operation

no lamps

Extraordinary sharpness and detail

up to 2,500,000:1 Dynamic contrast ratio

Flexible installation

up to ±50 percent vertical and ±20 percent horizontal manual lens shift

  • Optional wireless networking with enterprise-level security — plus wireless content sharing with Epson iProjection™3; wireless module sold separately
  • Advanced installation features — 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner® and more
  • Robust connectivity — supports HDBaseT™, 2x HDMI®, VGA, RJ-45, stereo mini and control management tools
  • Constant Brightness Mode4 — fine-tune the brightness setting to help maximize run time

Eco Features

  • RoHS compliant
  • Recyclable product
  • Epson America, Inc. is a SmartWay™ Transport Partner

Projector Details:

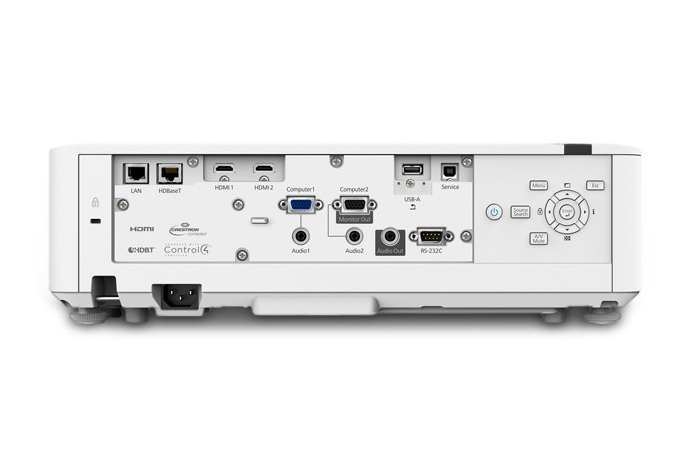

Interfaces:

  • 1x HDBaseT
  • 2x HDMI (1x MHL)
  • Analog: 1x D-sub 15 pin
  • 1x Control I/O: RS-232C D-sub 9 pin
  • USB-I/O: Type A 1x; Type B 1x
  • Wired LAN RJ45
  • Wireless LAN Optional Accessory
  • Audio in (stereo): 2x
  • Audio out (stereo): 1x

What's In The Box:

  • PowerLite L610W Projector
  • Power cord
  • Computer cable (VGA)
  • Remote control and batteries
  • Quick setup poster
  • Cable cover
Specifications Projector
Projection System:RGB Liquid Crystal Shutter Projection System
Projection Method:Front, Front/Ceiling, Rear, Rear/Ceiling
LCD Screen:0.67" (D10 with C2Fine™)
Driving Method:Poly-silicon TFT Active Matrix
Pixel Number:1,024,000 dots (1280 x 800) x 3
Colour Brightness - Colour Light Output:6,000 lumens1
White Brightness - White Light Output:6,000 lumens1
Aspect Ratio:16:10
Resolution:1280 x 800 (WXGA)
Throw Ratio Range:1.35–2.20
Size - projected distance:80" screen: 2.33–3.78 m
Size - projected distance:Vertical: ±30 degrees; Horizontal: ±30 degrees
Contrast Ratio:Up to 2,500,000:1
Colour Processing:10 bit
Colour Reproduction:Up to 1.07 billion colors
Light Source Life:Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
Illumination Technology:Laser Diode
Effective Scanning Frequency Range
Pixel Clock:Analog: 13.5–162 MHz (up to UXGA 60 Hz) Digital: 13.5–162 MHz (up to UXGA 60 Hz)
Horizontal:Analog: 15–92 kHz Digital: 15–75 kHz
Vertical:Analog: 50–85 Hz Digital: 24/30/50/60 Hz
Projection Lens
Type:Optical Zoom (Manual)/Focus (Manual)
F-number:1.5–1.7
Screen Size:Zoom: Wide: 50"–500" [1.44–14.76 m]; Zoom: Tele: 50"–500" [2.35–23.84 m]
Focal Length:20.0–31.8 mm
Zoom Ratio:1–1.6
Lens Cover:Lens cap (without string)
Projector Dimensions
Including feet:17.32" x 11.97" x 5.35" (W x D x H)
Excluding feet:17.32" x 11.97" x 4.73" (W x D x H)
Weight - with standard lens:Approx. 18.7 lb/8.45 kg
Remote Control
Operating Distance:8 m
Operating Angle:Front: Right/Left: ±60 degrees; Upper/Lower: +30 to -20 degrees Rear: Right/Left: ±30 degrees; Upper/Lower: +50 to +10 degrees
Power
Power Supply Voltage:100 – 240 V ±10%, 50/60 Hz AC
Power Consumption:Normal: 370 W; Quiet: 276 W; Networked Standby 2.0 W; Energy Saving: 0.3 W
