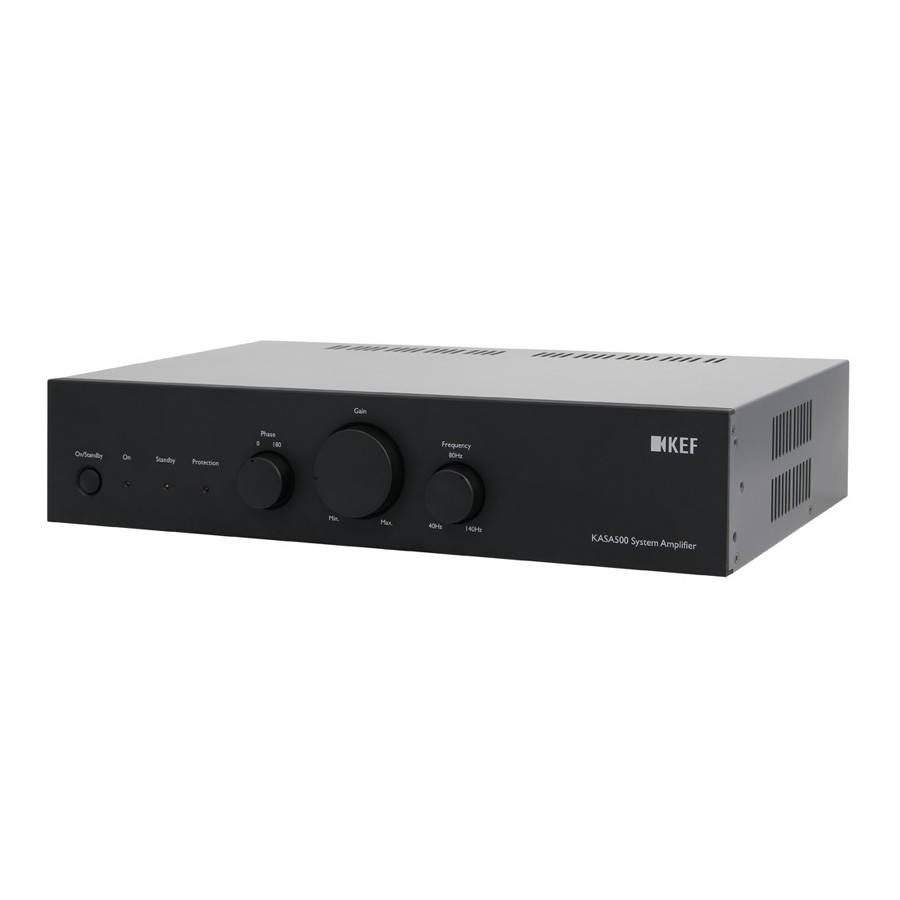

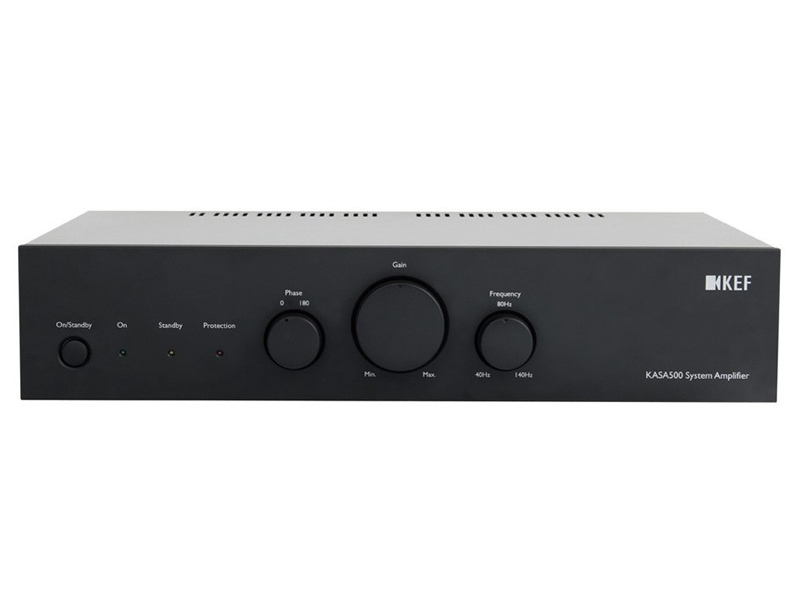

KASA500 is a powerful Class-D Dual 250WPC amplifier. This DSP controlled system amplifier is optimized to deliver thunderous bass from KEF Ci subwoofers.
KASA500 is a powerful Class-D Dual 250WPC amplifier. This DSP controlled system amplifier is optimized to deliver thunderous bass from KEF Ci subwoofers. With both line and speaker level inputs, and DSP configurable pass-through with optional high pass filters – the KASA500 is versatile and can be deployed in limitless system configurations. Optional rack mount ears included.
| Specification | |
|---|---|
| CROSSOVER FREQUENCIES | 40 - 140Hz or software bypass |

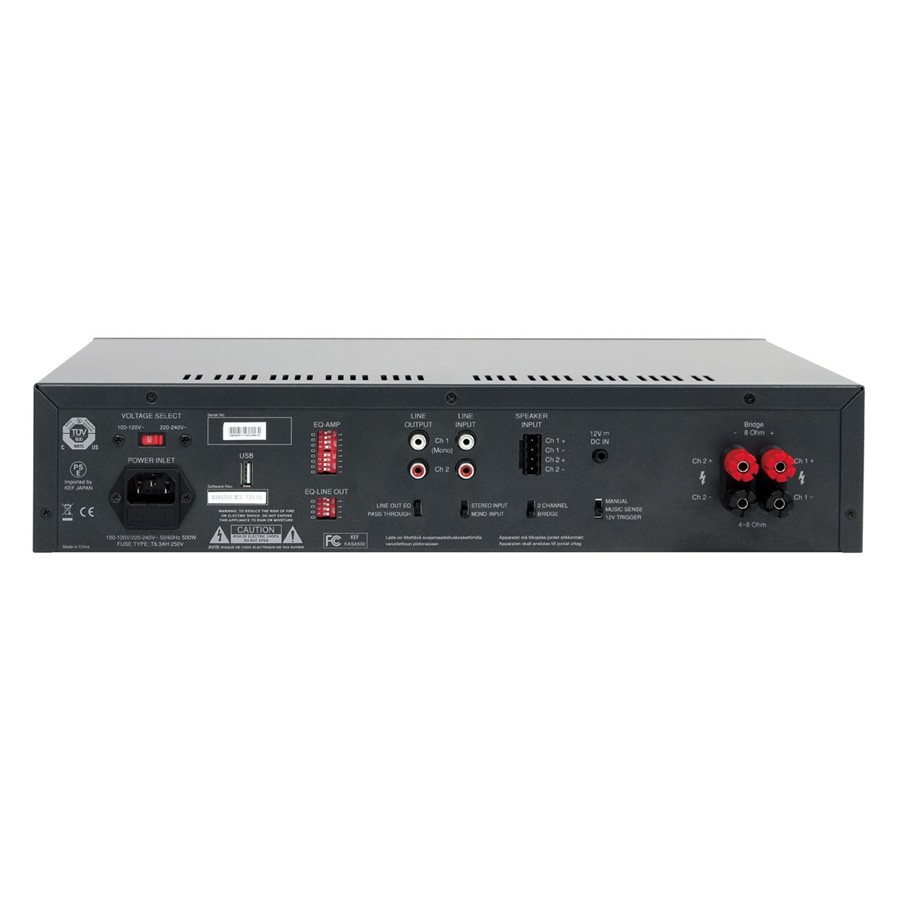

| INPUTS | Selectable stereo RCA line level, or mono LFE RCA level; Stereo speaker level |
| 12 VOLT TRIGGER INPUT VOLTAGE | 8 to 14 Volt [email protected] max ⅛" diameter female plug (tip positive or tip negative) |
| RECOMMENDED AMPLIFIER POWER | (<1% THD) 2 x 250watts 4ohms; Bridge 1 x 500watts 8ohms |
| AMPLIFIER POWER | 2 x 250watts 4ohms; Bridge 1 x 500watts 8ohms (<1% THD) |
| PRODUCT EXTERNAL DIMENSIONS | H x W x D : 88 x 432 x 304mm (3½ x 17 x 12 in.), H x W x D with feet : 92 x 432 x 304mm (3⅝ x 17 x 12 in.), H x W x D with rack ears; 2 EIA rack space: 88 x 483 x 304mm (3½ x 19 x 12 in.) |
| WEIGHT | 4kg (9 lbs) |
| UNIT MEASUREMENT | Piece |
