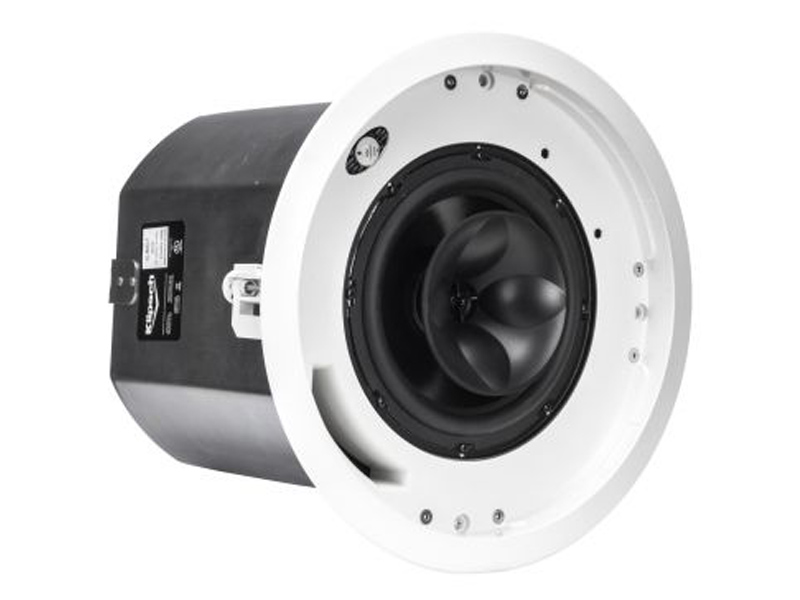

Klipsch In-Ceiling Loudspeaker IC800TW (Each)

IC800TW

$649

Price Match Guarantee*
Call Now! (905) 881-0128 or Chat for Deals



IC-800-T
The IC-800-T packs proven materials and Tractrix® horn technology into a high performance, install friendly, UL-2043 & 1480 certified loudspeaker with an integrated backcan. For distributed applications, the IC-800-T features a 70/100 volt, 100 watt, multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap settings is conveniently located under the speaker grille.

  • Tight 75 degree coverage pattern for high ceiling applications
  • 100 watt, low insertion loss, multitap transformer for high output and less compression
  • 70-volt, 100-volt or low impedance operation selectable via a front baffle switch
  • Tractrix port design for deep bass with improved linear response
  • Excellent low-frequency performance for applications where low-frequency bass extension is required
  • Designed to mix & match with Klipsch CA-T speakers
Specifications
FREQUENCY RESPONSE1 (+/- 4 dB) 49 Hz - 20 kHz
POWER HANDLING2 100 watts (22V), 400 watts peak
MAXIMUM SPL3 111 dB Continuous, 117 dB Peak
SENSITIVITY4 92 dB
COVERAGE ANGLE 75º
DIRECTIVITY INDEX (DI) 8 dB
DIRECTIVITY FACTOR (Q)6.3
NOMINAL IMPEDANCE (IN 8 OHM BYPASS MODE)6.5 ohms, 4.2 ohm minimum
COMPONENTS One 8" (20.32cm) woofer, 1” (2.54cm) Titanium diaphragm, compression driver
INPUT CONNECTION Terminal Strip
TAP SETTINGS 70V: 100w, 50w, 25w, 12.5w, 100V: 100w, 50w, 25w
ENCLOSURE TYPE Bass-reflex via Tractrix port
SAFETY AGENCY RATINGUL-1480, UL-2043
WIRE GAUGE ACCOMMODATED14 AWG
CUTOUT DIMENSIONS 12.625” (32.1cm) diameter
MOUNTING DEPTH 12.75” (32.4cm)
OVERALL DEPTH 13.125” (33.3cm)
OVERALL WIDTH 14.15” (35.9cm) diameter
THRU HOLE WIDTH 12.5” (31.75cm)
WEIGHT 21 lbs. (9.5kg)
FINISHES White/Paintable
ACCESSORIES Mud Ring Kit (PN: 061347)
