Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Reference Premiere series. With a 45°angled 8” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a FEA optimized Tractrix® horn, the Pro-180RPC LCR brings incredible versatility and dynamic, powerful Reference Premiere sound to your home theater system.
45 DEGREES FROM ORDINARY
Unlike traditional in-ceiling speakers, the Klipsch Pro-180RPC LCR delivers in-your-face, front-channel sound from an from a flush, overhead installation thanks to the unique 45° angled component design. Coupled with Klipsch legendary controlled directivity acoustic signature, you'll get a true front-row experience from an in-ceiling speaker.
SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.
FEA OPTIMIZED TRACTRIX HORN TRACTRIX® HORN
Klipsch proprietary Tractrix® Horn provides controlled directivity of high frequencies, for more dynamic, detailed sound with higher efficiency. Finite Element Analysis (FEA) utilizes computer modeling to optimize the dispersion pattern of the horn to ensure focused, detailed sound throughout the listening area.
Anodized aluminum construction maximizes cone rigidity while minimizing mass, providing exceptional efficiency with minimal cone breakup and distortion.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
IT'S HIP TO BE SQUARE
Why be limited to only round grilles? All Klipsch Reference Premiere Professional Series in-ceiling speakers come with both square and round grilles to accent any home decor, design and layout.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
OPTIMIZE YOUR PERFORMANCE

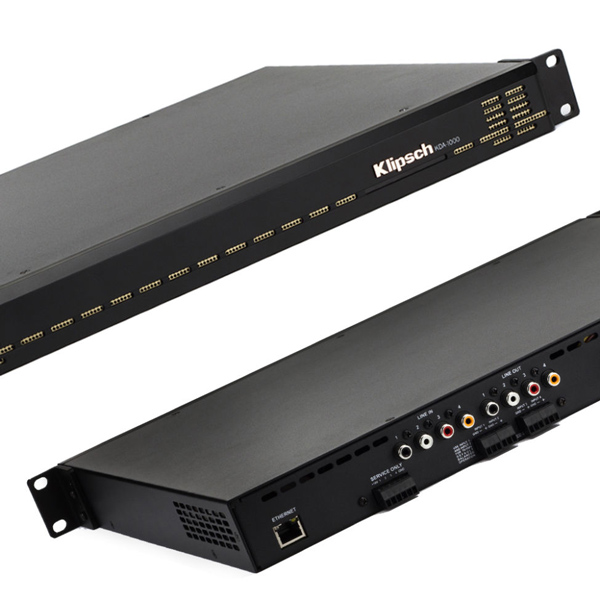

Designed for all Klipsch Professional Series Reference Premiere architectural speakers, our DSP Amplifiers provide optimize EQ equalization and limiter settings for each model beyond what is capable with traditional crossover network. Each preset created specifically by Klipsch engineers for maximum output.

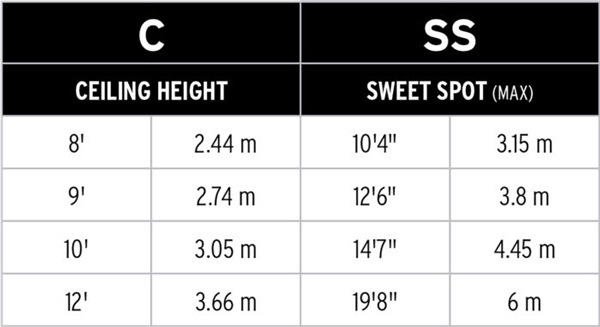

PRO-180RPC LCR PLACEMENT RECOMMENDATION
|Frequency Range||52Hz - 23kHz +/- 3dB|
|High Frequency Driver||1" (2.54cm) Titanium Dome Tweeter mated to a FEA optimized square Tractrix® Horn, Angled 45°|
|Power Handling||50W RMS / 200W Peak|
|Low Frequency Driver||8" (16.51cm) Cerametallic Woofer, Angled 45°|
|Sensitivity||96 dB @ 2.83V / 1m|
|Coverage Angle||90° x 90°|
|Impedance||8 Ohm Compatible|
|Enclosure Type||ABS/Infinite Baffle|
|Finish||Black Baffle/Frame, White Paintable Grille|
|Product Dimensions||15.25” W x 15.25” H x 5.45” D (38.7cm H x 38.7cm W x 13.8cm D)|
|Cutout Dimensions||11.57" (29.4cm)|
|Product Weight||8.4lbs (3.8kg)|
|Included||Round Grille, Square Grille, Paint Shield|
|Installation Kit||IK-810-C (Sold Separately)|
