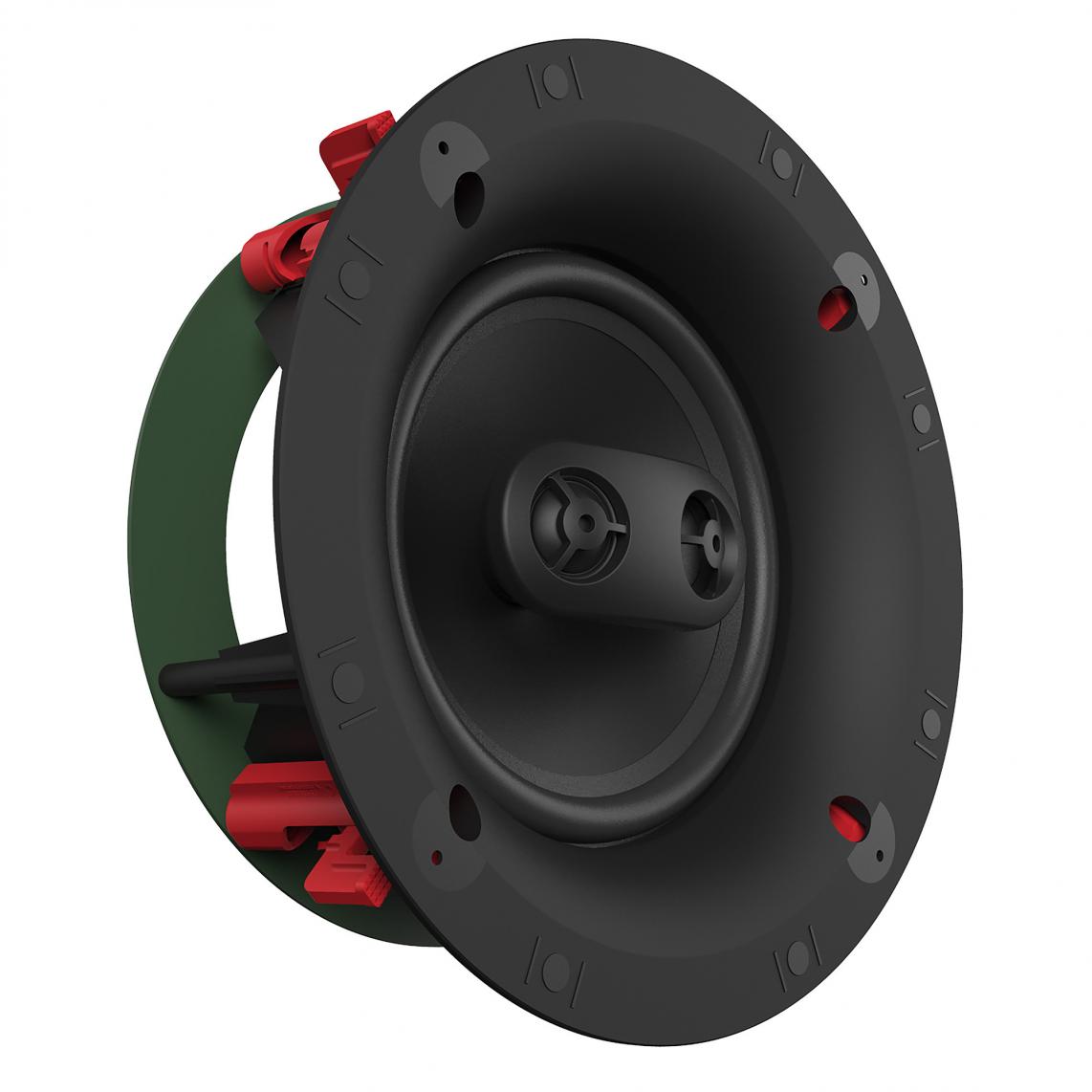

Klipsch In-Ceiling Speaker DS160CSM

Category : In-Ceiling Speakers
SKU : DS160CSM UPC : 743878032994

$299.00 CAD

Literature

DS-160CSM

Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160CSM features a 6.5” Polypropylene woofer and dual 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System, your install time is reduced by 75%.

Features:

  • 6.5” Polypropylene woofer
  • Dual 1” Silk Dome tweeter
  • Patent-Pending SkyHook™ Tool-Free Installation System
  • Bezel-Free Magnetic Grille

SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system by Swarm technology engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

HORN-LOADED PERFORMANCE
Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.


Specifications
Low Frequency Driver 6.5” (16.51cm) Dual Voice Coil Polypropylene Woofer
Frequency Response 77Hz - 20kHz +/- 3dB
High Frequency Driver Dual .75" (1.9cm) Silk Dome Tweeters
Sensitivity 91 dB @ 2.83V / 1m
Coverage Angle 160°
Power Handling 50W RMS / 200W RMS
Impedance8 Ohm Compatible
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
Mounting Depth 4.34” (11.03cm)
Cutout Dimensions 8.3” (21.1cm)
Product Weight 7 lbs (3.18kg)
Included Flat Paintable Magnetic Grille
Installation KitIK-650-C II (Sold Separately)
Fire Rated Enclosure ME-650-C (Sold Separately)
