| Specification |
|---|

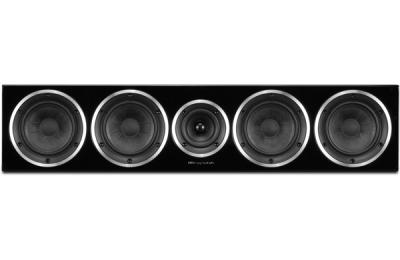

| General description | 2-way centre speaker
|
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Bass driver | 130mm Woven Kevlar Cone x 4 |
| Treble driver | 25mm Soft Dome
|
| AV shield | Yes |
| Sensitivity(2.83V @ 1m) | 90dB
|
| Recommended amplifier power | 25-200W |
| Peak SPL | 95dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4Ω
|
| Frequency response (+/-3dB) | 50Hz - 20kHz |
| Bass extension (-6dB) | 45Hz |
| Crossover frequency | 2.1kHz |
| Cabinet Volume (in litres | 20.9L
|
| Height (on plinth & spikes) | (174+16)mm |
| Width | 800mm |
| Depth (with terminals)( | (236+28)mm |
| Carton size | 890x330x280mm
|
| Net weight | 14.5kg/pcs |
| Gross weight | 16kg/ctn |
