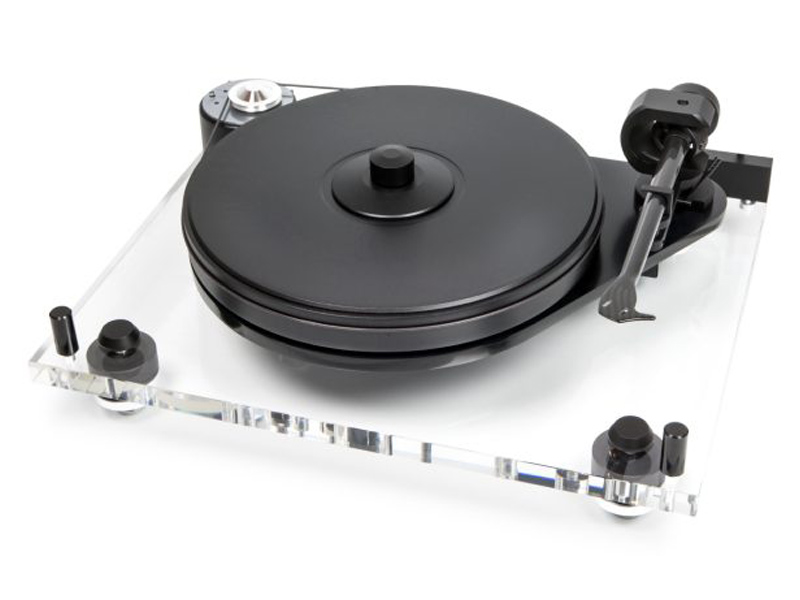

Project Audio Highend turntable with 9" evo tonearm - 6PerspeXSB - PJ65189593

Category : Turntables
SKU : PJ65189593 UPC : 9120065189593

$2,999.99 CAD

Literature

6 Perspex SB: The ultimate sub-chassis turntable for the 21st century

The transparent acrylic plinth stands on three individually height-adjustable TPE-damped aluminium cones and carries the motor and the sub-chassis. The sub-chassis, made of Corian, rests on three magnetic fields. A magnetic subchassis suspension system avoids parasitic noise normally caused by con-ventional spring mechanism. A supplied spirit level allows easy adjustment of the sub-chassis. A quiet running AC motor unit drives the platter’s outside edge via a belt. It does incorporate an advanced DC-driven motor control, that ensures perfect speed stability and electronic speed change.

The resonance-optimised platter is a sandwich construction utilising a fine-balanced medium density fibre platter and a 4 mm thick flat-ground layer of vinyl and a screw-down metal record clamp. It runs on an inverted bearing with stainless-steel axle carrying a ceramic ball/plate bearing. The headshell and armtube of high-end tonearm 9cc Evolution are fashioned from a single piece of carbon-fibre. A conical armtube avoids standing wave reflections. Inverted tonearm bearing comprises four hardened stainless tips in ABEC 7 spec ballraces. Supplied counterweights are suitable for cartridges weighing between 5 – 7.5 g / 7 – 10 g / 9 – 11 g or 10 – 14 g.

A top-grade connection cable ‘Pro-Ject Connect it E’ iwith RCA connectors is supplied (123 cm). A dust cover is included.

Features

  • Acrylic Plinth
  • Sub-chassis made from Corian with magnetic suspension
  • Acoustically inert sandwich construction of platter with combination of MDF and vinyl layer as mat
  • Inverted main bearing with ceramic ball/plate
  • Belt drive with AC motor with DC driven AC generator
  • Electronic speed control with 33/45 rpm switching
  • Pre-mounted 9" tonearm 9 cc Evolution
  • Tonearm bearings with ABEC 7 ballraces
  • 5P Connect it Phono CC cable with RCA plugs
Specifications
Speed33, 45 (electronic speed change)
PrincipleBelt drive
Platter300 mm MDF/vinyl Sandwich
Main bearingInverted stainless steel with ceramic ball/plate
Wow & flutter33: +/- 0.60% 45: +/- 0.60%
Speed variance33: +/- 0.10% 45: +/- 0.10%
Signal to Noise73 dB
Tonearm9” cc EVO, Carbon
Effective arm length230 mm
Effective tonearmmass8.0 g
Overhang18.0 mm
Tracking force range10 - 35 mN
Included accessory15 volts DC / 800 mA power supply, dust cover
Power consumption6 Watts max / < 0.3 Watt standby
Dimensions460 x 183 x 365 mm (WxHxD)
Weight11.0 kg net
