| AUDIO QUALITY |
|---|
| Total Frequency Response | 30 Hz → 27 Hz |
| IN-CEILING MOUNT |
|---|
| Shape | Round |
| Dimensions | 9.375" (23.81 cm) diameter |
| Flush Mounting Depth | 3.625" (9.21 cm) |

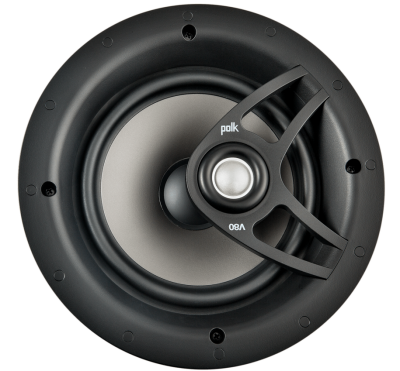

| IN-CEILING SPEAKER |
|---|
| Grille Dimensions | 11.125" (28.26 cm) diameter |

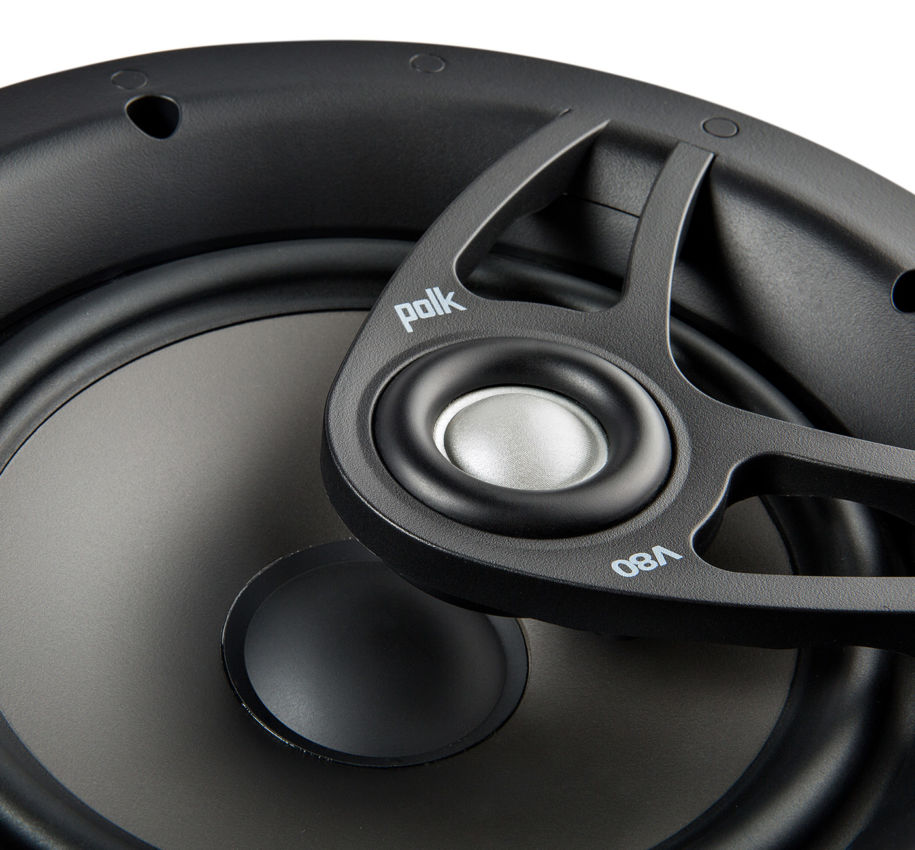

| Driver Complement | (1) 8" (20.32 cm) d (Round) Composite Polymer Cone with Butyl Rubber Surround - Mid/Woofer
(1) 1" (2.54 cm) d (Round) Swivel Mount, Silk Dome - Tweeter |
| Depth | 4.125" (10.48 cm) |
| Warranty |
|---|
| Lifetime Warranty | Yes |
| SHIPPING CARTONS |
|---|
| Carton 1 | 6.5" (16.51 cm) h x 12.25" (31.12 cm) w x 12.5" (31.75 cm) d - 5 lbs (2.27 kg) |
| Accessories |
|---|
| Optional Accessories | (1) PB LC80i - Pre-Construction Bracket - Sold Separate
(1) Fire-Rated Back Box - Sold Separate
(1) Square Sheer Grille™ - White, Paintable - Sold Separate |
| Included Accessories | (1) Polk’s Wafer-thin Sheer Grille™ - White, Paintable |
| AUDIO QUALITY |
|---|
| Nominal Impedance | 8 ohms |
| Sensitivity (1 watt @ 1 meter) | 90 dB |
| Lower and Upper -3dB Limits | 45 Hz → 25 Hz |
| EXTERNAL AMPLIFIER |
|---|
| Recommended Amplifier Power Per Channel | 10 watts → 100 watts |
| INPUTS |
|---|
| Speaker Inputs | (1) Pair of Push Connectors - Gold Plated |
