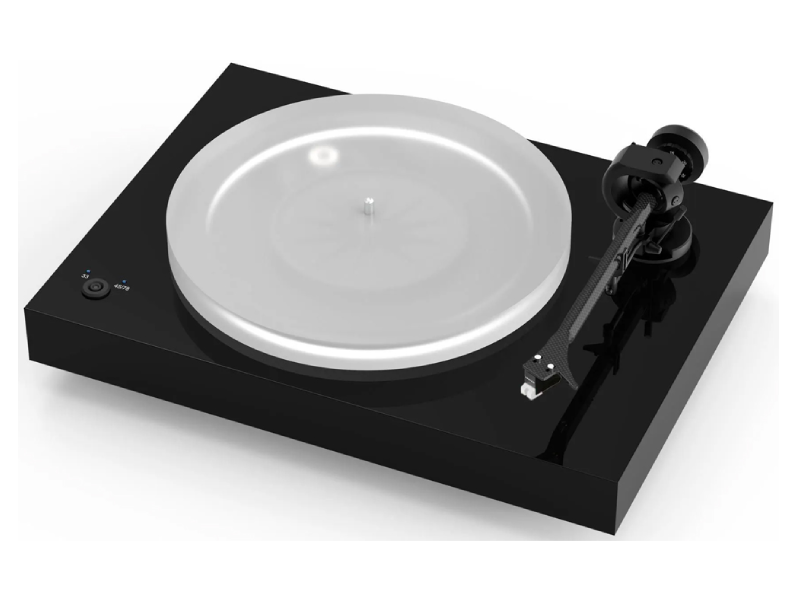

Project Audio X2 B Turntable with Mini XLR in Satin Black - PJ22293331

Project Audio X2 B Turntable with Mini XLR in White - PJ22293379

Project Audio X2 B Turntable with Mini XLR in Piano Black - PJ22293317

Project Audio X2 B Turntable with Mini XLR in Satin Black - PJ22293331

Project Audio X2 B Turntable with Mini XLR in Real Wood Walnut - PJ22293355

Category : Turntables
SKU : PJ22293331 UPC : 9120122293331
SKU : PJ22293379 UPC : 9120122293379
SKU : PJ22293317 UPC : 9120122293317
SKU : PJ22293331 UPC : 9120122293331
SKU : PJ22293355 UPC : 9120122293355

$2,379.99 CAD
$2379.99
$2379.99
$2379.99
$2379.99

Literature

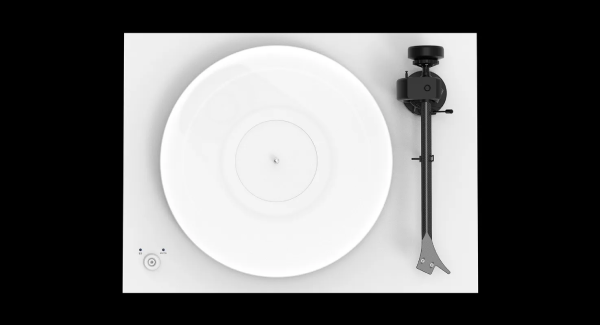

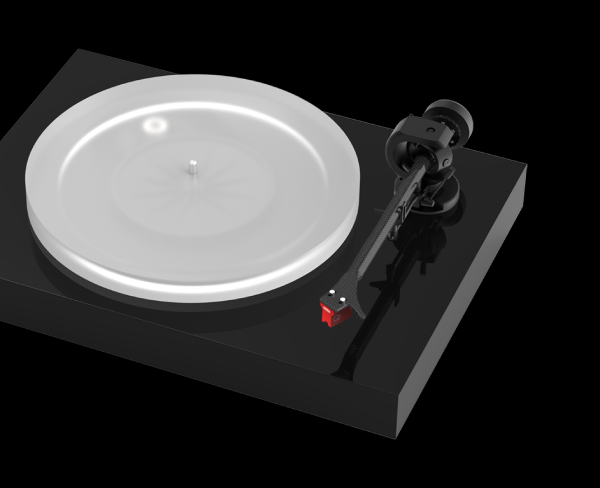

X2 B

The beginning of a balanced era.

Welcome to a new generation of X-Line turntables



The X2 B features our revolutionary True Balanced Connection

Turntables look back on a long history. Over time, many things have changed, not only from technical possibilities, but also from the environment. Wireless networks are omni present and countless electronic devices make your home „smarter“. This means there are now a lot of additional electromagnetic fields, which could interfere with your turntable‘s signal. This was simply not the case 30 years ago. To ensure the best connection to your phono preamplifier we designed our „True Balanced Connection“.



WHAT'S TRUE BALANCED?

Balanced audio connections are usually known from the professional sector like recording studios or live concerts. It is very important to have a stable & interference free connection, as these signals will be highly amplified. The same applies to the connection from your turntable to the phono preamplifier. The big advantage of a balanced connection is its ability to remove picked up noise and interferences. And best of all, cartridges by nature are already balanced signal transducers! With True Balanced your are simply using everything, literally everything, that your cartridge is picking up from the record groove. You are not throwing away half of the usable signal, like is done in typical single-ended RCA phono connections.

The X2 B comes with mini XRL and RCA outputs and with our standard semi-balanced Connect it Phono E RCA cable. By upgrading it to our fully balanced mini XLR to mini XLR version (available separately) and using a balanced phono stage, like our Phono Box S3 B or DS3 B, you are fully set-up for the True Balanced experience. This leads to increased dynamics, less noise and improved signal to noise ratios. You can imagine it, like hearing parts of your music that literally were not there before.

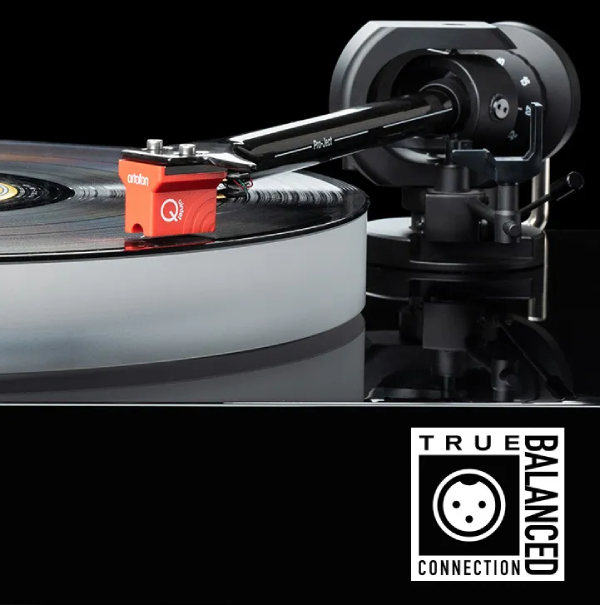

True Balanced

Unleash the full power

Connect your X2 B with one of our new True Balanced Phono Cables to your phono preamp and benefit from an interference-free signal with increased dynamics & lower noise level.

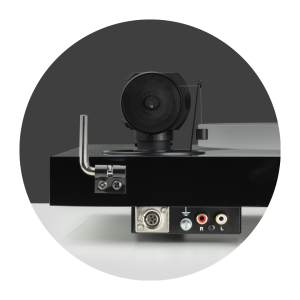

Mini XLR Output

One cable connects it all

We offer a wide range of balanced phono cables with different connectors to fit all our phono preamps. If you want to use your X2 B with a Phono Box S3 B you need a „Connect it Phono Mini XLR / Mini XLR“.

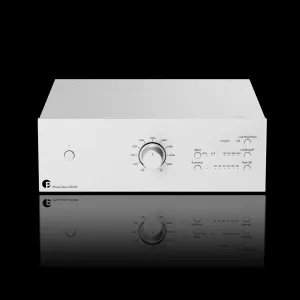

Balanced Preamps

A perfect match!

Pair your X2 B with one of our new balanced Phono Boxes and benefit from a fully balanced signal transmission to your phonp preamplifier. Check out our new Phono Box S3 B & DS3 B for further information.

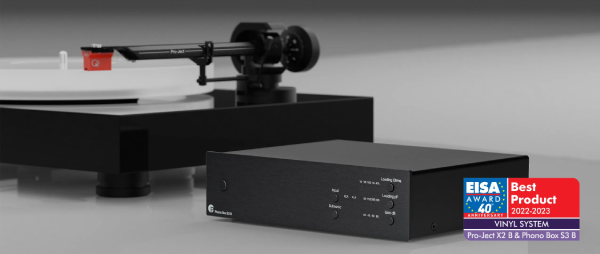

EISA Award for True Balanced

Cartridges are balanced signal transducers by nature! Due to the internal wiring of MM cartridges, you'll need a MC cartridge to access the entirety of that balanced signal. The X2 B comes with an Ortofon Quintet Red MC cartridge factory aligned, and together with our new True Balanced Connection cables and our balanced phono stages you'll be able to access high-end features that were previously only available in the most expensive hifi categories. In combination with our Phono Box S3 B and X2 B, our True Balanced concept won the prestigious EISA Award for best Vinyl System!

The X2 B retains all the real high-end features the original X2 had on offer.

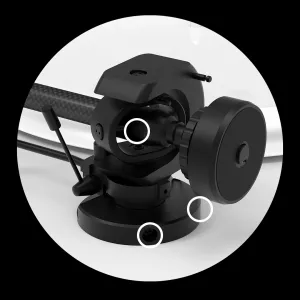

Azimuth & VTA

Fully adjustable

The X2 B comes with fully adjustable Azimuth & VTA. It offers you the possibility to modify your X2 as you want it.

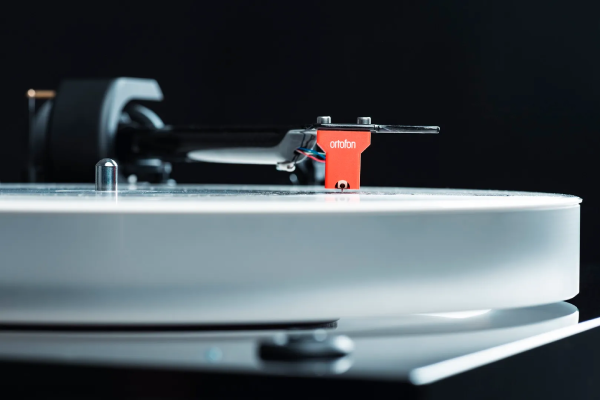

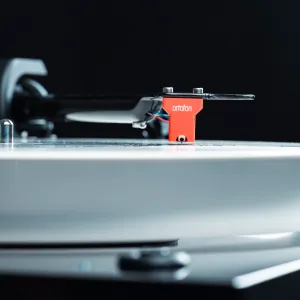

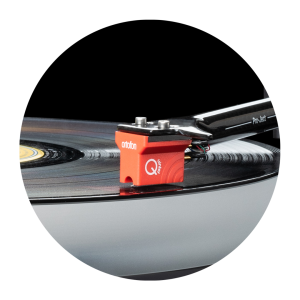

Quintet Red

High-end MC cartridge

The Ortofon Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth & is the perfect partner for our new X2 B.

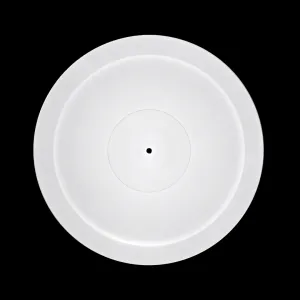

2 kg Platter

Resonance free acryl

The perfect platform to place your precious vinyl records, guaranteeing absolute reliability in its performance and sonic character.



33/45/78 RPM

High precision motor control

A sophisticated DC/AC generator board generates clean and stable power to drive the motor. Easily change speed with the push of only a single button.

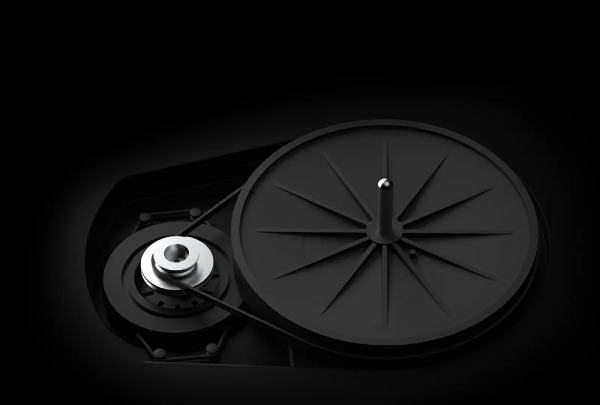

New motor suspension

A good motor by itself, is already very quiet. To get the best performance out of it, we have improved the motor suspension. The X2 B‘s motor chassis is carefully balanced and suspended on a precision tuned TPE belt - this way the motor chassis is effectively decoupled from the main plinth for optimal performance.



9'' Carbon-Aluminium Tonearm

Compared with its little brother the X1 B, the tonearm is longer - 9“ in length - and the tube has a wider diameter. The carbon/aluminium sandwhich construction results in better internal damping. The increased mass makes the tonearm an excellent fit for low compliance MC cartridges.

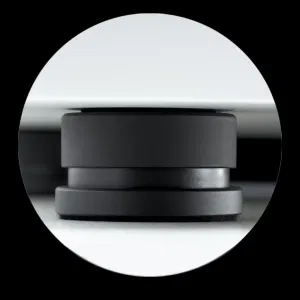

Metal Feet

Damped & height adjustable

The three height adjustable damped aluminium feet guarantee the perfect stand & massively reduce risk of acoustical feedback.



The Tonearm

9'' Carbon-Aluminium Tonearm

Finished as a one-piece, with no resonance-inducing headshell, the X2 B can also be set for azimuth and VTA adjustment. The tonearm is then supplied with a TPE-damped counterweight.



Made in EU

Since 1991

Made in Europe by a turntable factory with decades of experience, it is a true hi-fi turntable which using our new True Balanced Connections takes your vinyl hobby to the next level.




Specifications
Included accessories15volts DC /0,8A power supply, Dust cover, Connect it E Phono cable, feltmat
Tracking force range0 - 30mN
Effective tonearm mass13,5g
Overhang18 mm
Effective arm length230 mm
Tonearm9” carbon/aluminium sandwich
Main bearingstainless steel/brass
Platter30mm thick, 2 kg heavy acryl
Signal to noise70 dB
Speed variance33: 0.25% 45: 0.20%
Wow & flutter33: 0.12% 45: 0.10%
Principlebelt drive
Speed33, 45, 78 (electronic speed change)
Power consumption4,5 watts max / 0.3 watt standby
Dimensions460 x 150 x 340 mm (WxHxD)
Weight10 kg
