12" Pioneer 1300 Max Power with Built-in Class-D Amplifier Ported Enclosure Subwoofer - TS-WX1210AM
You may also like
12” – 1,300 Max power with built-in Class-D Amplifier - Ported Enclosure Subwoofer
- 1,300 Watts Max Power (350 Watts Nom.) - Subwoofer
- 300 Watts Max (150 Watts Nominal) - Amplifier
- Built-in Class-D Amplifier
- Variable Bass Boost (0 to 12 dB, 20Hz to 130Hz)
- 12 Ported Enclosure Subwoofer

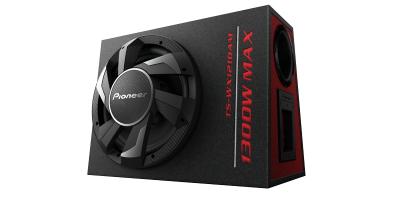

The TS-WX1210AM ported enclosure subwoofer features a strong and lightweight IMPP™ (Injection-Molded Polypropylene) composite speaker cone to enhance your music with deep, rich bass. It also features a Class-D amplifier built into the side of the enclosure, to amplify the bass to high volumes, but also makes for a more compact design that’s ideal for fitting into those tight spaces in today's smaller vehicles. The subwoofer enclosure comes with customizable settings which include adjustable bass boost to ensure the user can get the type of bass they want, depending on their own taste in music.
Clear Sound, Less Noise
The TS-WX1210AM features a cellulose fiber woofer cone, attached to a urethane surround, allowing for extra excursion to move more air and deliver accurate bass. A 4 ohm single voice coil design and Ferrite magnet assists in increasing the overall power handling and sound pressure level (SPL) output with no sacrifice in sound quality.
Powerful Amplified Subwoofer
Built with a high output 300-watt Class-D amplifier attached to a high sensitivity woofer specifically optimized to give you solid bass response with minimal distortion. The Class D amplifier uses less power, takes up less space, and generates less heat than traditional amplifier designs.
Flexible Sound Adjustment

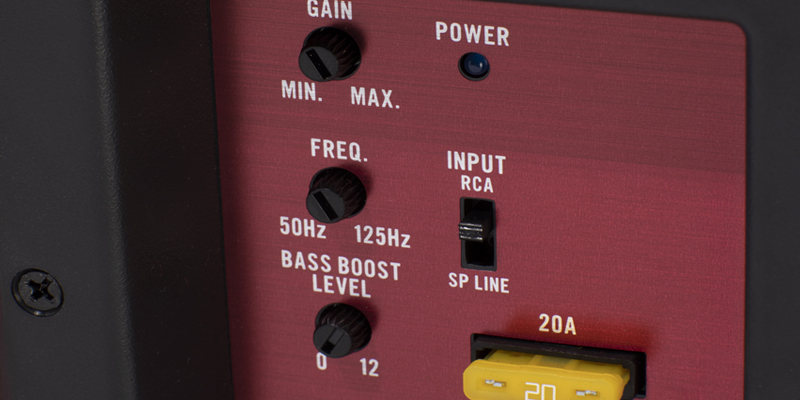

User adjustable controls include a variable bass boost (0 to +12 dB) providing enhanced bass boost control.
Flexible Installation
The trapezoid shaped enclosure is designed for high rigidity and to reduce internal standing waves, while also increasing installation flexibility. The enclosure can be installed freely in the cabin or re-positioned in the cargo area with the subwoofer firing rear, front or upwards for optimal bass tuning. The enclosure is fully carpeted, creating a non-slip, durable and scratch resistant surface. Installation flexibility includes speaker line or RCA connection signal input.
CarSoundFit
Pioneer’s CarSoundFit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
What's in the Box
- TS-WX1210AM Subwoofer
- (8) screws 2 Brackets
- Wiring Harness
- One Year Warranty Sheet
| Standard & Performance | |
|---|---|
| Product Standard | CTA-2006 |
| Amp - Max Current Consumption | 13 A |
| Amp - Power Source | DC 14.4 V |
| Bass Boost | 0 to +12 dB - Level |
| Continuous Power Handling | 350 W - Speaker / 150 W - Amplifier |
| Frequency Range | 20 Hz to 130 Hz |
| Maximum Peak Power Handling - Watts | 1300 |
| Sensitivity (1W/1m) | 113dB |
| Features | |
| Built In Amp | Yes |
| Port Box volume | 33 |
| Port Diameter | 4.325 |
| Port Length | 7.525 |
| Subwoofer Grille | Resin |
| System-Type | Powered |
| Materials | |
| Basket Material | Stamped Metal |
| Center Cone Material - SW | Cellulose Fiber |
| Center Cap Material | Polypropylene |
| Cone Material | Cellulose fiber |
| Damper | Aramid |
| Gasket | ABS |
| Surround Material | Urethane |
| Surround Type | Rolled |
| Voice Coil Bobbin | Polyimide |
| Voice Coil Type | Single Voice |
| Voice Coil wire | Copper |
| Woofer Magnet Material | Ferrite |
| Woofer Magnet Weight | 33.5 |
